Standard Mouse House

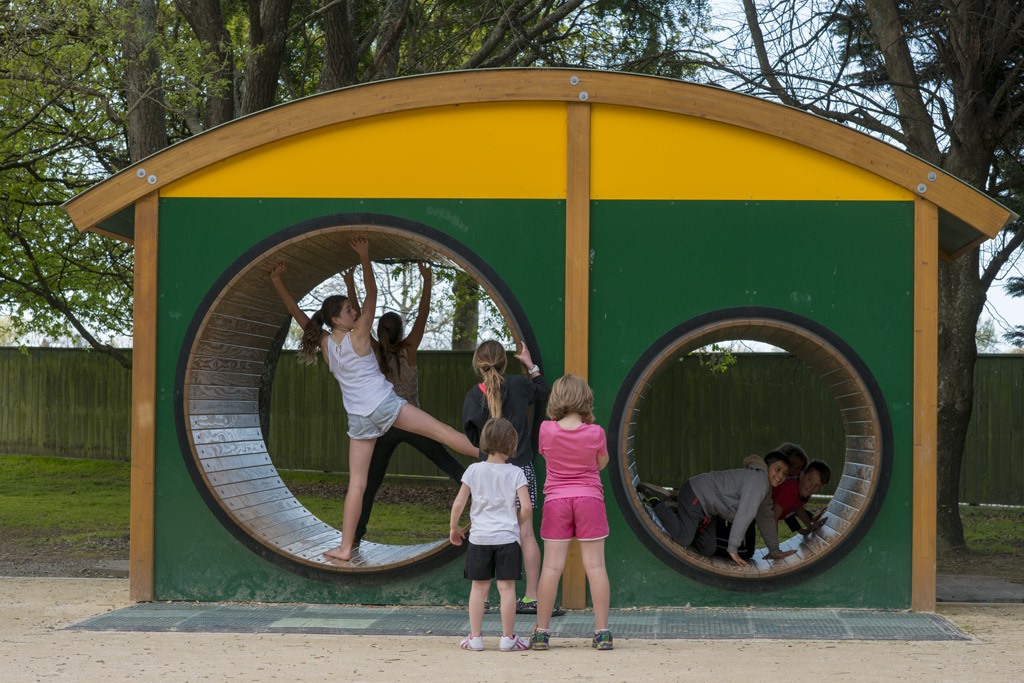

The Standard Mouse House is available as a large single drum (SM2000) and as a double drum (SMD) with a large and a small drum.
The Standard Mouse House was designed for customers that prefer wooden cladding.
The SM 2000 is suited to sites where crane access is difficult or not possible. The SMD requires crane access.
Specification
- certified to NZ, AU and EU standards
- fully galvanized frame
- heavy duty PU laminated wheels
- heavy duty bearings
- top grade LOSP treated / stained radiata pine inner drum
- unique rubber flange system to prevent finger entrapment
- large 2000mm diam drum
- range of colours
- anti-graffiti painted 12mm ply faces
- color steel roof
- laminated posts and roof beams (SMD)
- SMD has large (2000 diam) and small (1500 diam) drums
- speed reducing device available (extra)

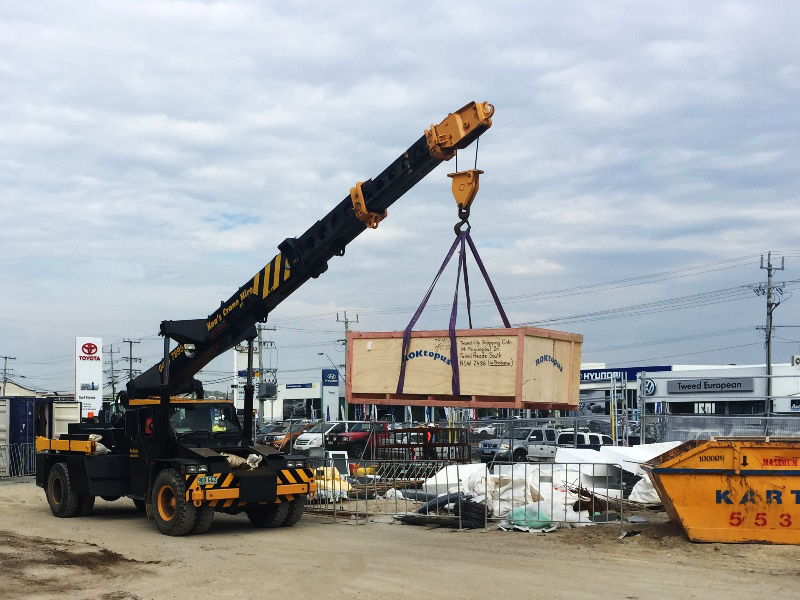

Transport Installation & Maintenance
- SM2000 designed for sites where crane access is not possible
- crane required for SMD
- SMD is transported in a HC container
- require specialist assembly crew
- easy maintenance
Information for Architects – Plans for downloading
SM2000 Foundation Details Loose Fill Surface
SM2000 Foundation Details Non Displacing Surface
SM2000 Surface Recommendations AUS
SM2000 Surface Recommendations NZ
SMD Surface Recommendations AUS
SMD Surface Recommendations NZ
